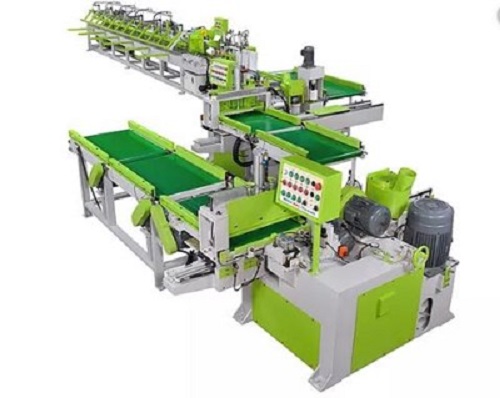

MODEL: MAC-600Semi-Automatic Finger Joint
Part1. CONVEYOR 2SETS
Conveyor motor 0.37Kw
Machine size (L x W x H) 1000x1000x900mm
Net weight/Gross weight 600kg/630kg
Hệ thống ghép FINGER MAC-600
Thanh toán Smartpay Giảm ngay 20% tối đa 500.000đ khi thanh toán qua Smartpay tại quầy
Hệ thống ghép FINGER MAC-600
Thanh toán ví Moca trên ứng dụng Grab Nhập MOCA400 Giảm/Hoàn tiền 10% tối đa 400.000đ khi thanh toán Online bằng ví Moca
Đánh giá chi tiết Hệ thống ghép FINGER MAC-600

Hệ thống ghép FINGER MAC-600

Hệ thống ghép FINGER MAC-600

Thông tin sản phẩm

MODEL: MAC-600Semi-Automatic Finger Joint
Part1. CONVEYOR 2SETS
Conveyor motor 0.37Kw
Machine size (L x W x H) 1000x1000x900mm
Net weight/Gross weight 600kg/630kg
Part2. RIGHT SIDE FINGER SHAPER
Width of conveyor table 600mm
Available working length 180~900mm
Available working thickness 18~150mm
Cut off saw 3.75kw
Table moving hydraulic motor 1.5kw
Conveyor motor 0.37kw
Scoring saw 0.75kw
Finger cutter (axes50mm) 15kw
Linear guide 30mm
Machine size(L x W x H) 2500x1700x1600mm
Net weight/Gross weight 2500kg/2700kg
Part3. CONVEYOR 1SET
Conveyor motor 0.37kw
Machine size (L x W x H) 1800x1000x900mm
Net weight/Gross weight 650kg/680kg
Part4. LEFT SIDE FINGER SHAPER
Width of conveyor table 600mm
Available working length 180~900mm
Available working thickness 18~150mm
Cut off saw 3.75kw
Table moving hydraulic motor 1.5kw
Conveyor motor 0.37kw
Gluing 0.37kw
Scoring saw 0.75kw
Finger cutter (axes50mm) 15kw
Linear guide 30mm
Machine size(L x W x H) 2700x1700x1600mm
Net weight 2700kg
Gross weight 2900kg
Part5. CONVEYOR 1SET
Conveyor motor 0.37kw
Machine size(L x W x H) 1800 x 1000 x 900mm
Net weight/Gross weight 650kg/680kg
Part6. FINGER ASSEMBLER FINGER JOINTER – ASSEMBLER + AUTO FEEDER
Available working length 4500/5000/6200mm
Available working width 22~150mm
Available working thickness 22~70mm
Working speed 10~30M/min(3~6cycle)
Speed of cut off saw (50Hz) 2800rpm
Max.squeezing force 7ton
Max. hydraulic pressure 140g/m
Cut off saw 2.25kw
Feeding motor (inverter) 1.5kw
Conveyor motor 0.37kw
Hydraulic pump 3.75kw
Chip outlet hood 100mm x 1
Suction volume required 50 M^3/min
Machine size(L x W x H) 5500x1700x1600mm
Net weight/Gross weight 3300kgs/3500kgs
